4K UHD & Zero Latency: Transmits 4K@30Hz HDMI and USB 2.0 signals over a single Cat5e/6/7 cable at distances of up to 120 m (390 ft) with zero latency. No software or drivers required—just plug and play.
● Multi-user control: Up to 16 sets of transmitters (TX) and receivers (RX) can operate together via a standard Gigabit Ethernet switch without the need to set up a VLAN. Each TX and RX has a built-in DIP switch for easy pairing.
● 3-in-1 USB Hub: Easily control a remote computer using a keyboard, mouse, touchpad, or other USB 2.0 peripheral (high speed up to 480 Mbps).
● High Refresh Rate: Supports 1080P@120Hz and 7.1-channel audio for the best gaming experience. Works with all operating systems, such as Windows, Mac, and Linux.
● High reliability: CE and FCC certified. Built-in surge and electrostatic discharge (ESD) protection. Mounting brackets are included for easy installation.
● Important notes: This product is a KVM over IP extension kit. It does not support matrix switching when used with a Gigabit switch. If you need an IP KVM matrix solution, please refer to the 4KIPJ100/4KIPJ200 models.

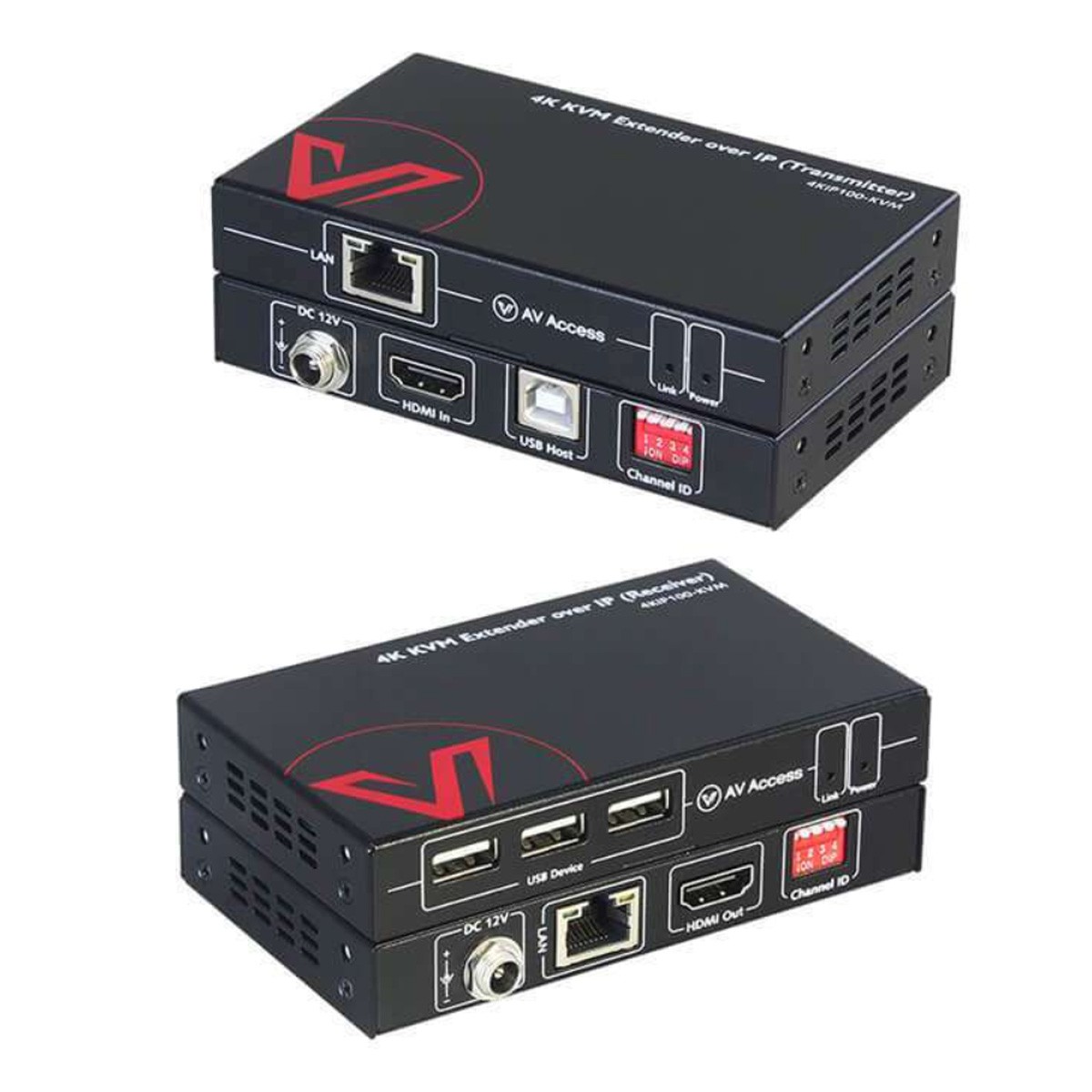

4K HDMI KVM Extender over IP, 120m/390ft USB Extender w/ Zero Latency & 1080P@120Hz, up to 16 Sets with DIP Setting
Multi-user control of remote systems

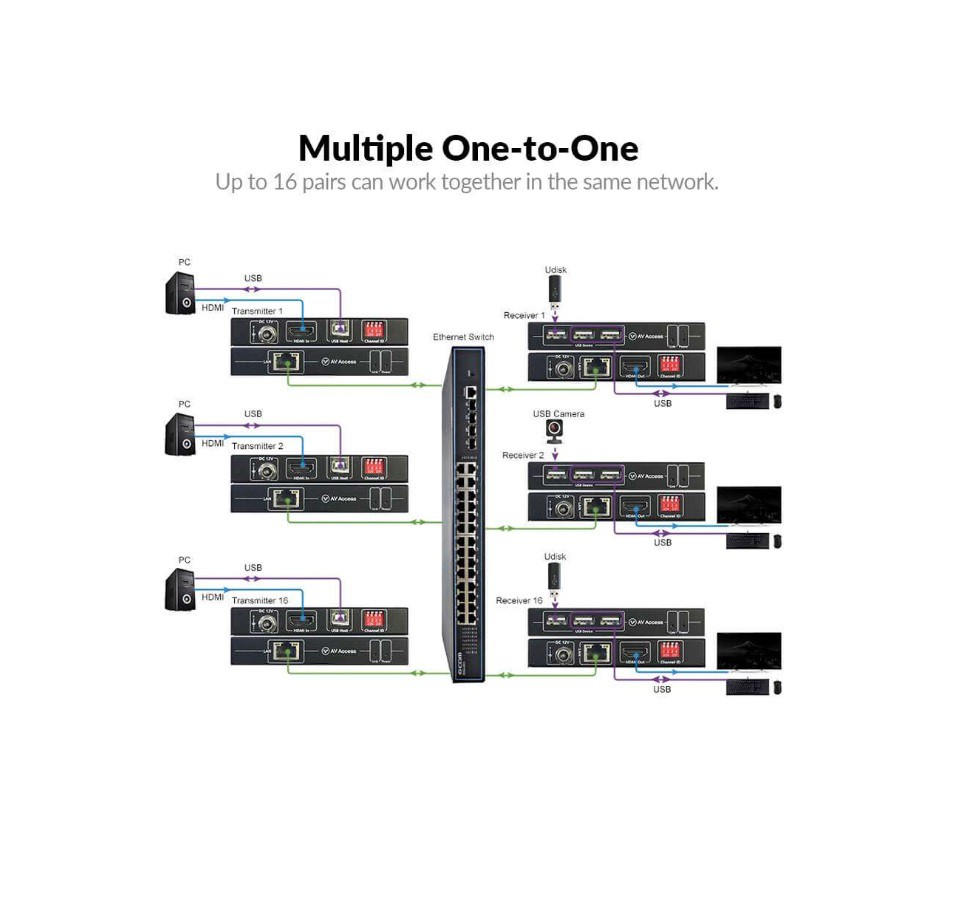

Up to 16 transmitter and receiver sets can operate via a standard Gigabit Ethernet switch without the need for VLAN configuration. The 4KIP100 KVM over IP Extender is ideal for control centers, especially data centers and video monitoring centers, where multiple operators can simultaneously access their remote computers/servers from a local console.
Note: This product does not currently support PoE. It is recommended to use a PoE adapter to connect it to a PoE switch if necessary.
Easy Installation Thanks to Plug and Play
This cost-effective 4K KVM over IP kit features a plug-and-play system. It requires no software or drivers, ensuring a completely hassle-free installation. To transmit the signal from the transmitter (TX) to the receiver (RX), simply set the DIP switches on the RX to the same positions as on the TX.
KVM extension without delays

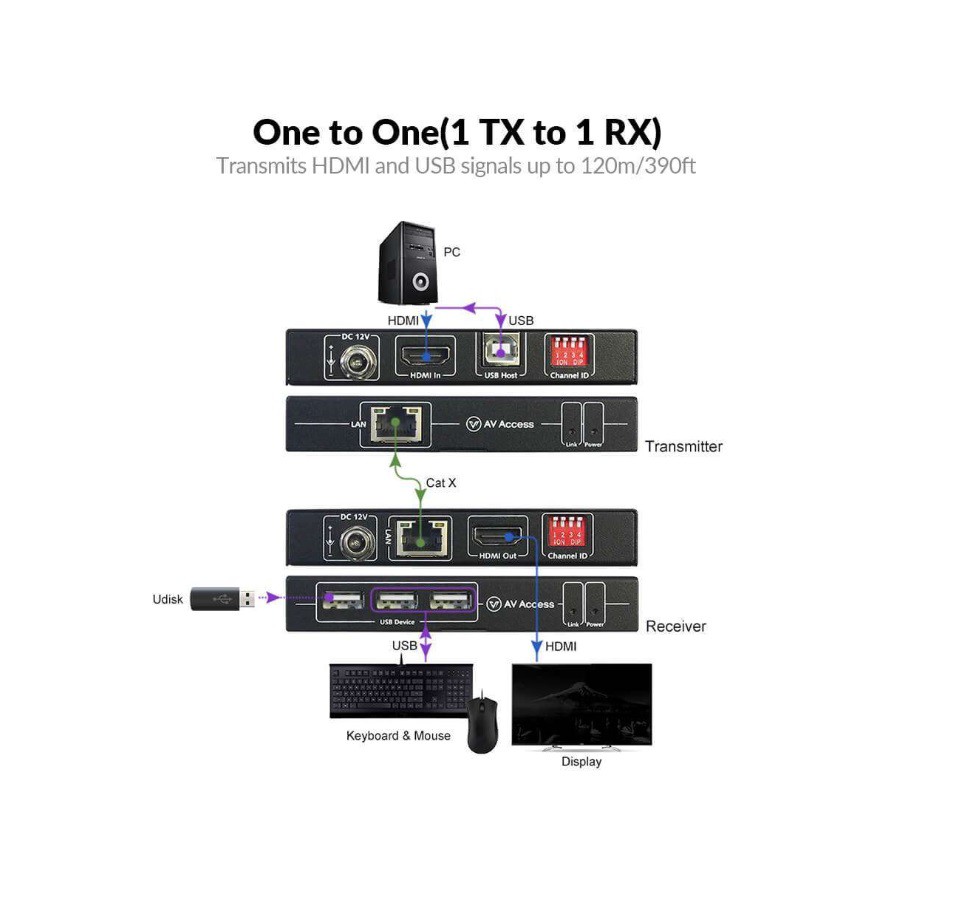

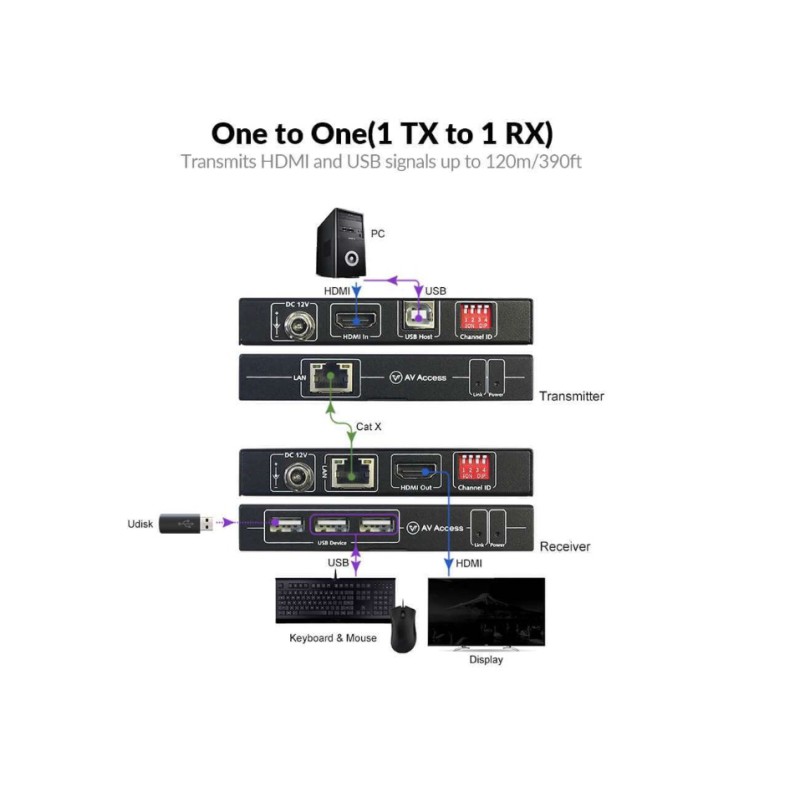

The IP transmitter and receiver pair can be directly connected, extending 4K@30Hz HDMI and USB signals over a single Cat5e/6/6a/7 cable up to 120 m (390 ft) without delay. The transmission ensures high-quality video without loss or time lag.
Remote control with support for up to 3 USB peripherals
Install this 4K KVM extender in your home, school, office, or control center to transmit USB 2.0 signals up to 120 m/390 ft using a single Cat-category cable. You can remotely control your computer, PlayStation, or Xbox using up to 3 USB 2.0 peripherals, such as a keyboard, mouse, microphone, camera, speaker, game controller, touchpad, etc.
Specifications

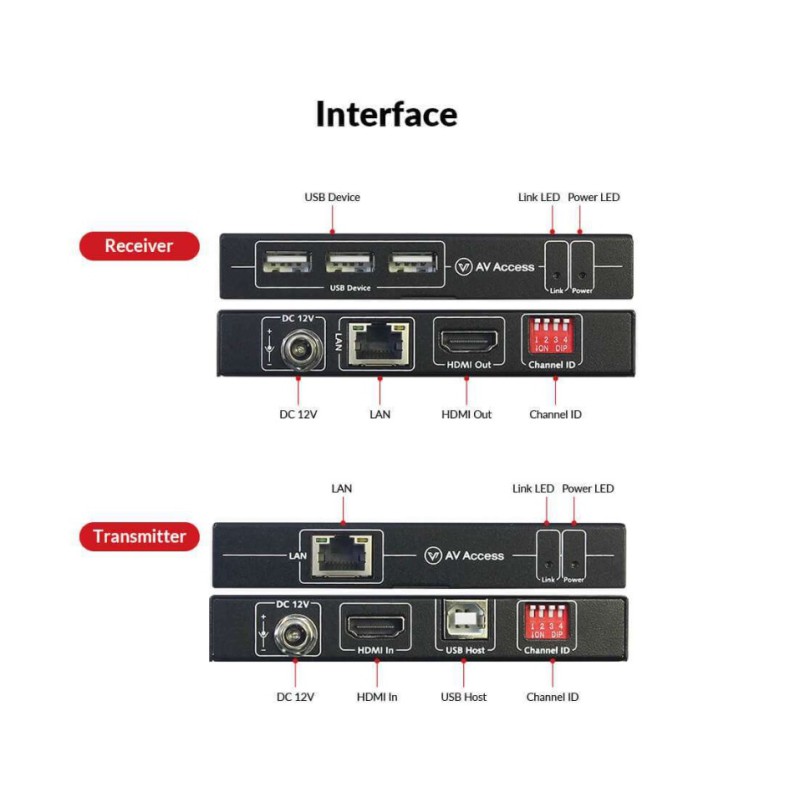

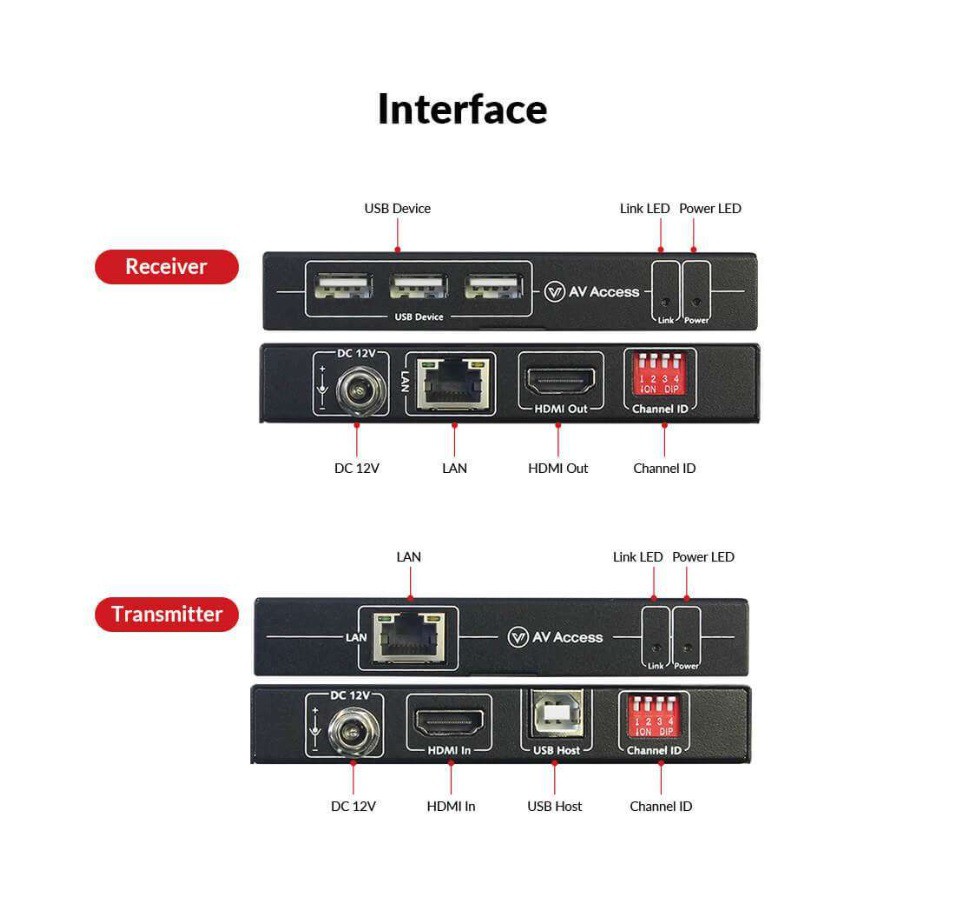

Inputs/Outputs:
- 1 x HDMI IN (female Type-A 19-pin HDMI)
- 1 x USB HOST (female USB Type-B)
- 1 x 4-pin DIP switch
- 1 x 12V DC connector with lock
- 1 x LAN (RJ45)
Input signal type:
- HDMI 1.4b
Supported input resolutions:
- Up to 4K@30Hz
Supported input audio formats:
- PCM 2.0 / 2.1 / 5.1 / 7.1
- Dolby Digital 5.1 channels
- Dolby Digital Plus
- Dolby TrueHD
- DTS 5.1 channels
- DTS-HD High Resolution Audio
- DTS-HD Master Audio
Maximum data throughput:
- 9 Gbps
Maximum pixel clock:
- 300 MHz
Output signal type:
- Compressed IP streams
Transmission distance:
- Cat 5e cable or newer: 120m / 395ft
- HDMI: 15 m / 49 ft
General information:
- Power supply: DC 12V 1A
- Power consumption: <2.5 W
- Device dimensions (W x H x D): 112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’
- Device weight (without accessories): 0.18 kg / 0.40 lb
