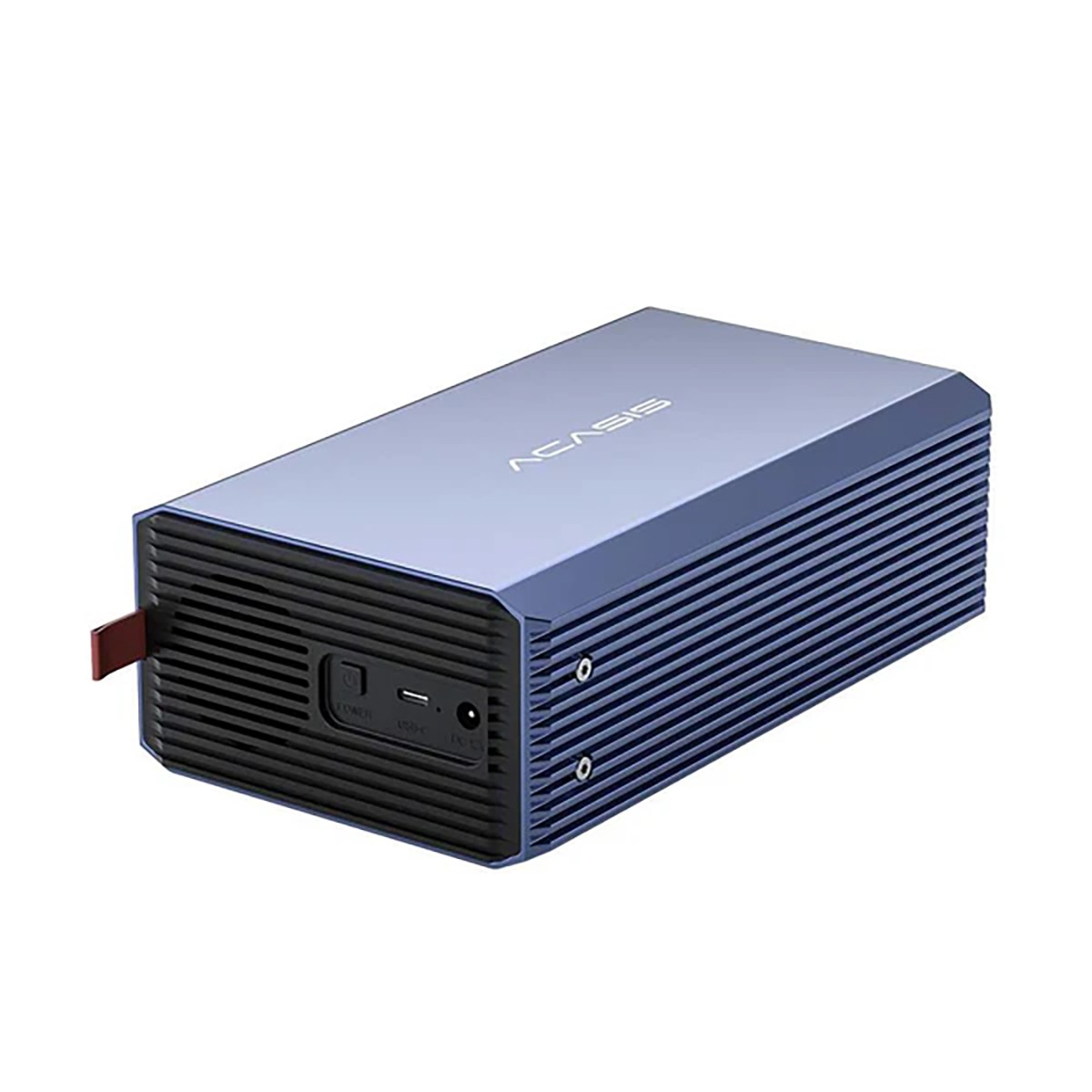

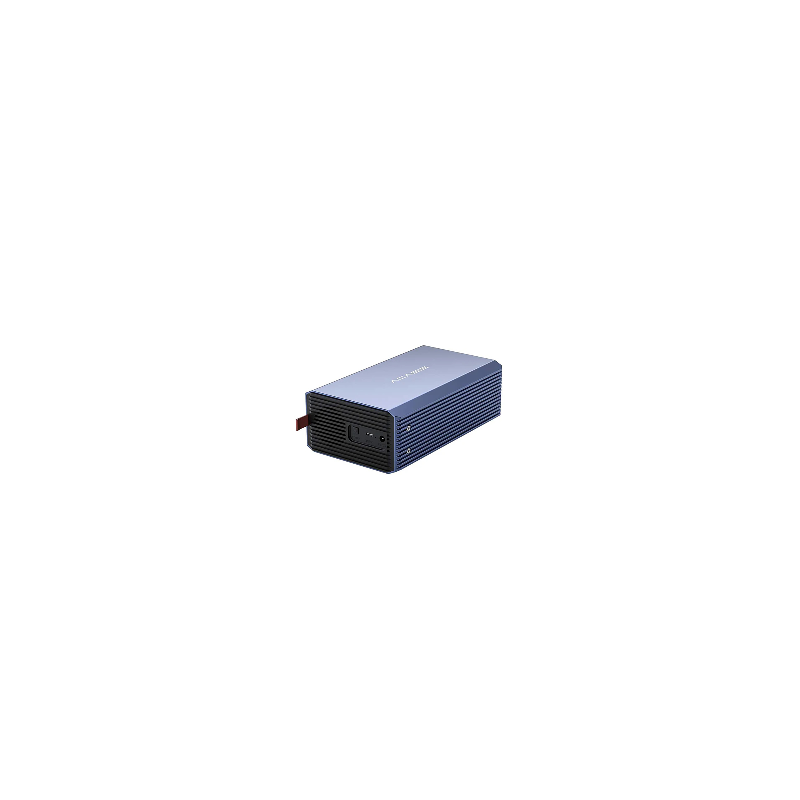

Acasis RAID enclosure 2x 3,5"/2,5" HDD/SSD Hardware RAID 0/1/SPAN/JBOD macOS/Win/Linux

Acasis enclosure with hardware RAID for two 2.5"/3.5" SATA HDD/SSD drives, connected to a computer via a USB-C (USB-A) port

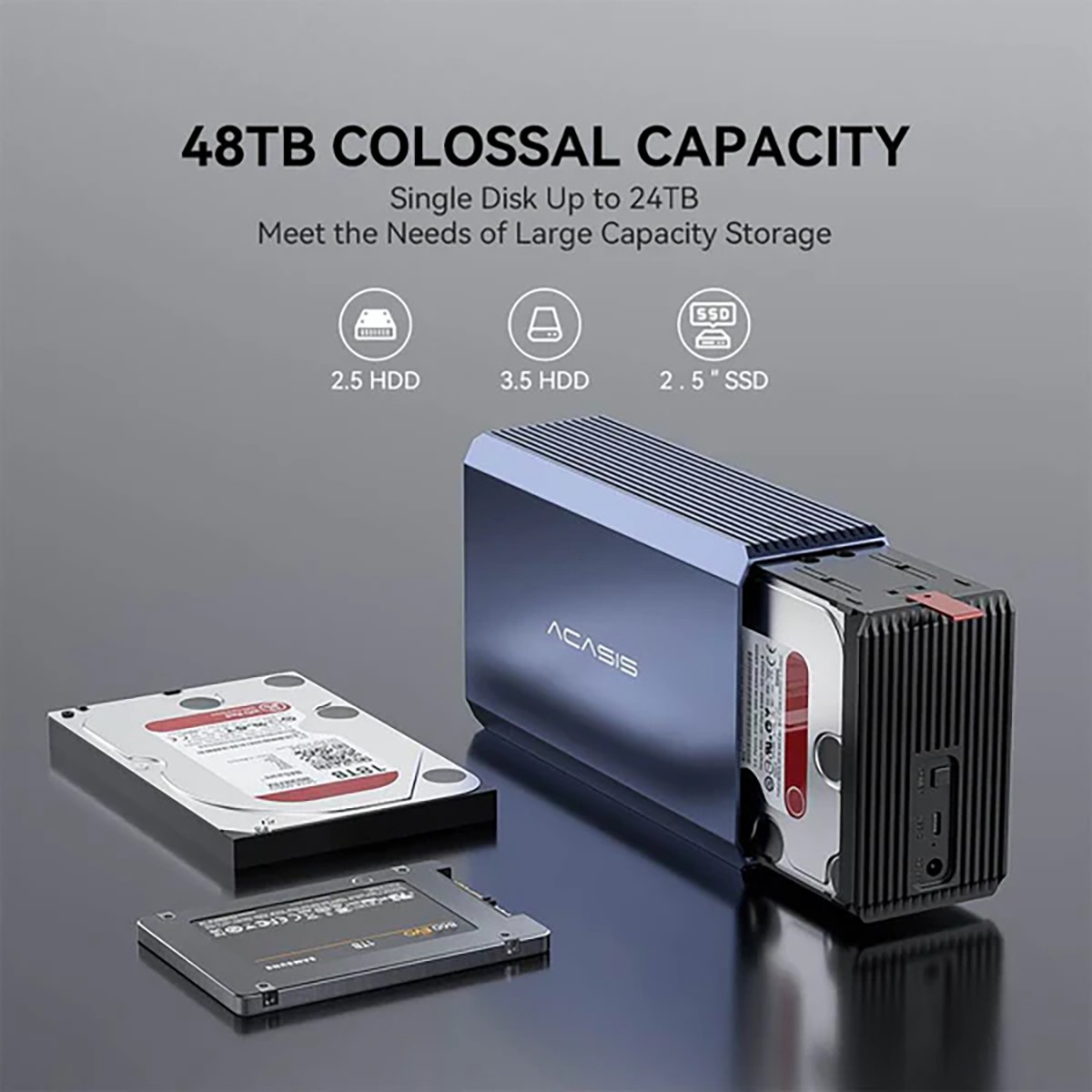

4 RAID configurations including RAID-0 and RAID-1, supports drives up to 48TB (in RAID-0, a single drive up to 24TB). Built-in quiet fan, compact enclosure, wide compatibility—macOS, Windows, Linux

This is a two-bay RAID array. It supports both SATA HDD and SSD drives. It features four RAID modes, any of which the user can select. In RAID-0 mode: the theoretical speed is twice that of a single drive. Easier read and write operations. In RAID-1 mode: a secure backup of important data, databases, etc., ensuring nothing is lost. In Span mode (shared mode), the actual capacity is the sum of the capacities of the two hard drives to create a large storage space. When JBOD mode is selected, both hard drives operate independently and do not affect each other.

Easier to use.

The Acasis dual-bay RAID array is equipped with a USB Type-C 3.1 port with 10G bandwidth and dual high-speed, stable SATA 3.0 transmission. This allows for the transfer of a 1GB file in 3 seconds. It automatically puts the hard drive to sleep when not in use, reducing wear on the hard drive and energy consumption while extending the hard drive’s lifespan.

The hard drive can be woken up during data read and write operations. Intelligent sleep mode makes the hard drive more durable. Equipped with LED backlighting, the blue light flashes during data read and write operations, and the operating status is visible at a glance.

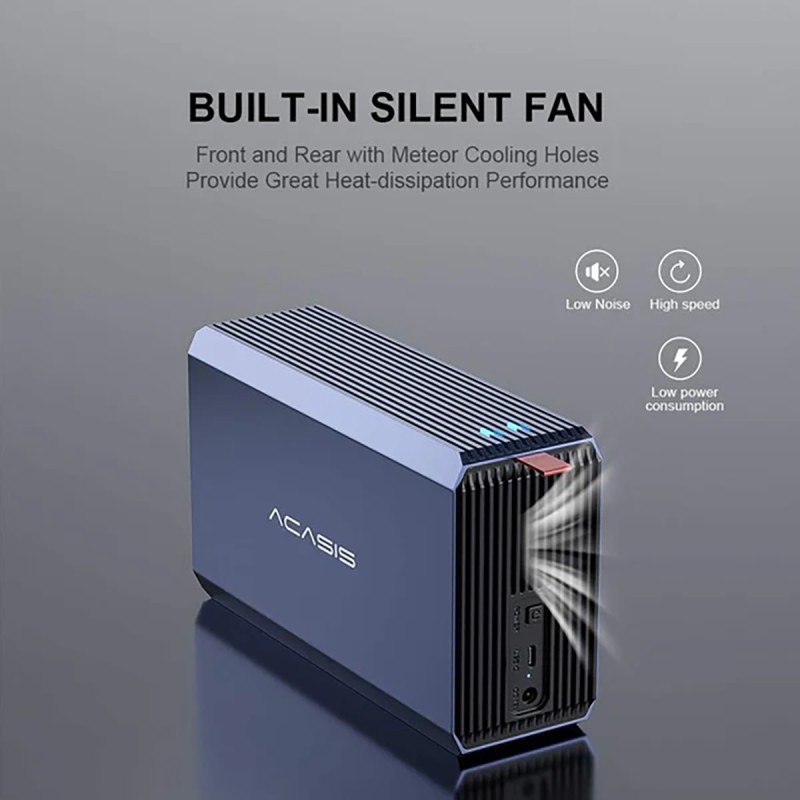

The reinforced aluminum alloy housing and built-in 50×50 mm fan improve air circulation and heat dissipation, and the dual heat dissipation system can withstand high temperatures.

Technical Specifications

• Enclosure with hardware RAID
• Number of drive bays: 2x 3.5"/2.5" HDD/SSD
• Host interface: USB-C Gen.2 10 Gb/s
• Hardware RAID
• RAID modes: RAID-0, RAID-1, JBOD, SPAN
• Maximum capacity per drive: 24TB
• Cooling: active, built-in silent fan

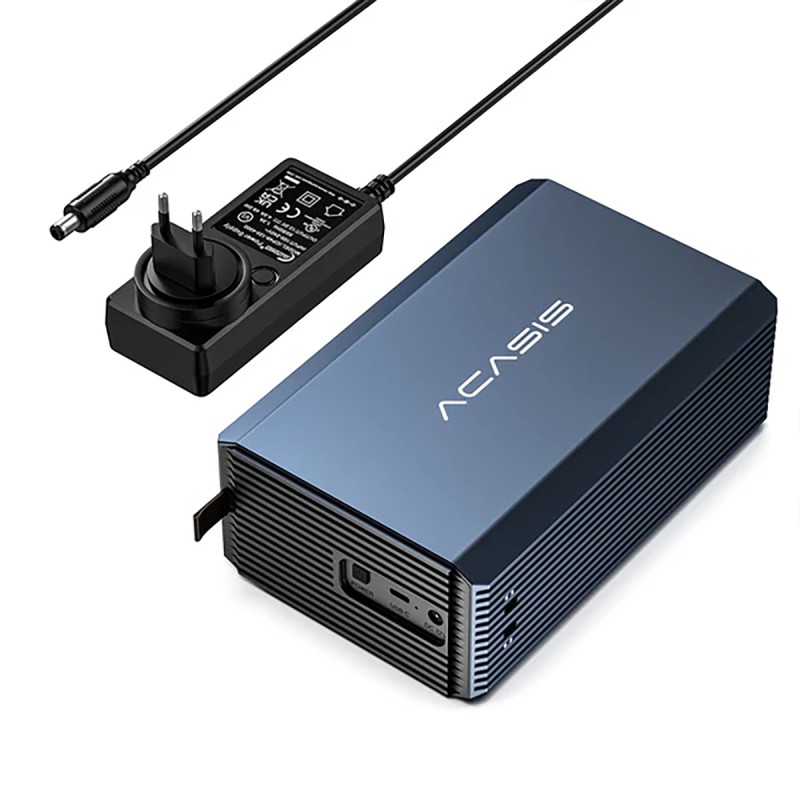

• External power supply
• Status LEDs s
• Physical power switch
