eGPU adapter ADT-UT3G PCIe 3.0 x16 USB4 | Thunderbolt macOS, Windows 40 Gb/s

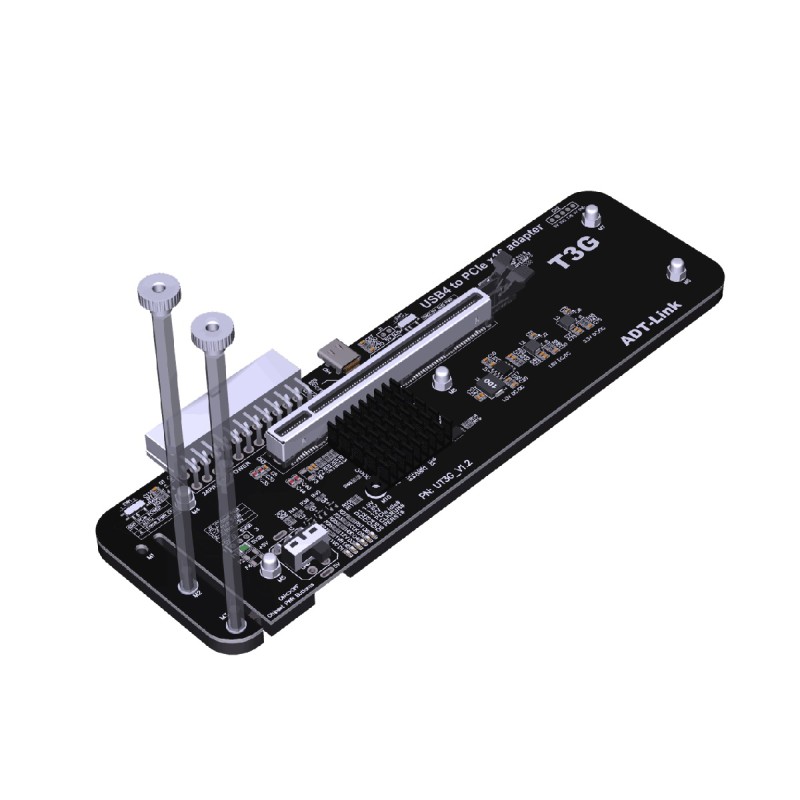

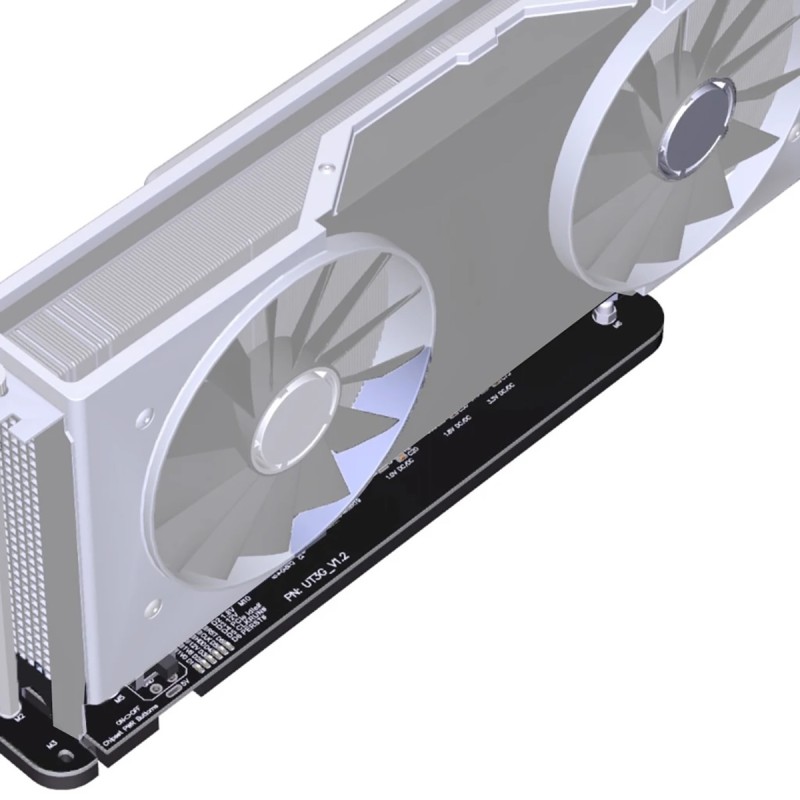

The ADT-UT3G is a PCIe 3.0 x16 to USB4 or Thunderbolt adapter to connect, for example, a high-speed external graphics card to a PC with a USB4 or Thunderbolt connector or another PCIe card to a mac or PC with a USB4 or Thunderbolt connector.

With this ADT-UT3G adapter, you will connect a Windows PC with USB 4 or Thunderbolt ports:

• a high-speed external graphics card, and

to macOS and Windows PCs:

• high-speed external network card - e.g. 2x 10GbE, 2x 25GbE, 2x 40GbE
• SAS, SATA or NVMe controller
• RAID controller
• video capture or editing card
• audio capture or editing card
• and other PCIe cards

The data transfer rate between the PCIe connector and USB 4 | Thunderbolt is max. 40 Gbps

For correct operation of the adapter, an external ATX power supply with a wattage compatible or higher with the PCIe card to be installed is required - the power supply is not included.

Questions and answers

Q1: There are three switches on the ADT-UT3G adapter. What are they used for?

SW1: forced start switch for the graphics card. Position 1 for automatic start, position 2 forced start. By default, the switch is set in position 1 to automatically start the graphics card

SW2: Forced shutdown switch for the USB5V power supply. Position 1 for automatic start-up, position 2 for forced start-up. By default the switch is set to position 1 for automatic start-up

J3: ASM2464PD circuit power switch. ON position for automatic start-up, OFF position for power off. By default, the switch is set to ON position for automatic start-up of the circuit.

Technical specifications

• 64 Gbps PCIe 4.0 x4 bus speed
• USB4 | Thunderbolt 4 | Thunderbolt3 40 Gb/s host interface
• 0.7m USB-C cable included
• PCIe bus power supply 75W max.
• High-profile card mounting screws included

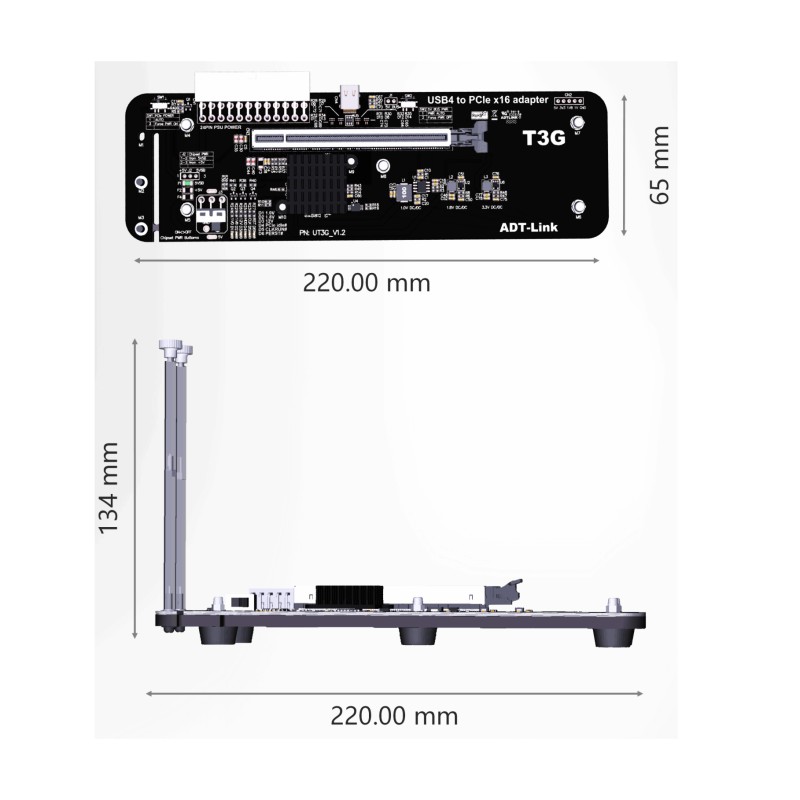

• Dimensions 220x65mm
• height with mounting screws 134mm
• Physical PCIe 3.0 x16 connector
• Compatibility macOS*, Windows

* macOS on computers with Silicon processors, i.e. M1, M2 or M3, does not support external eGPU graphics cards.
