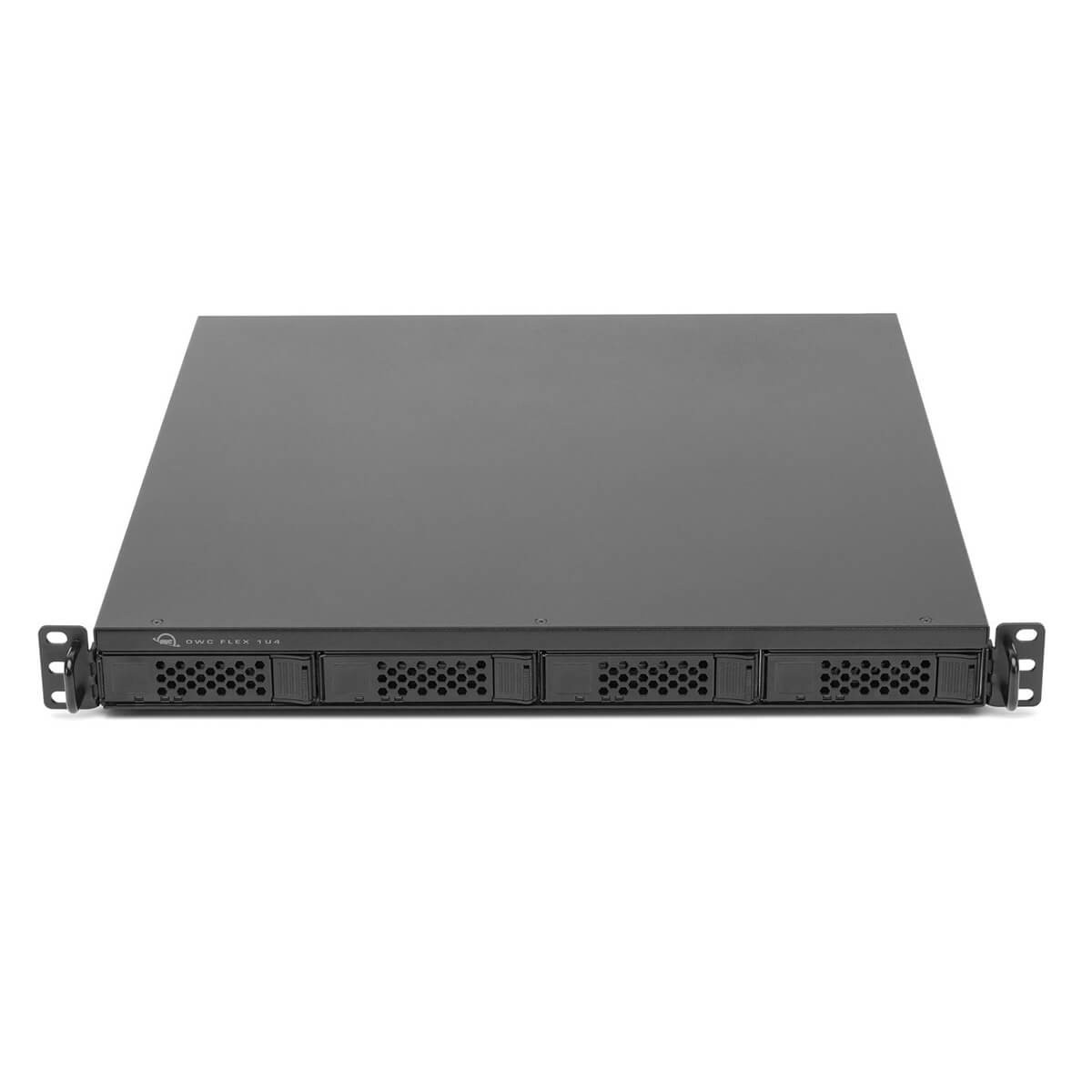

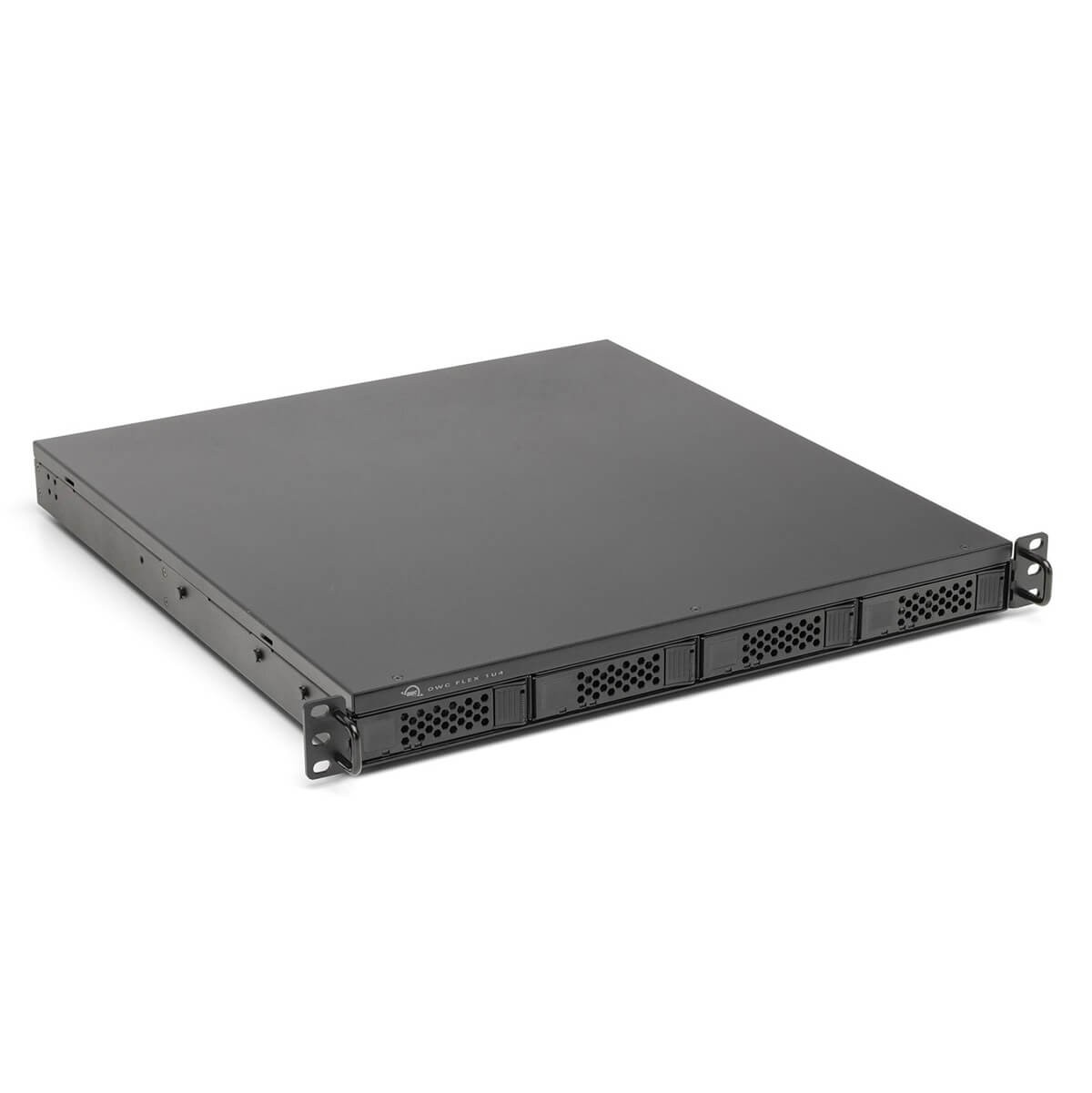

OWC Flex 1U4 Rack 19″ 0TB

Go beyond the desktop with the most flexible PCIe storage, docking and expansion solution for any rack application

• Drive Variety: Use SATA/SAS and U.2/M.2 NVMe drives with capacities up to 128TB and true Thunderbolt speeds up to 2750MB/s,
• Drive flexibility: replace drives quickly and easily when needed
• Go to the max: Use U.2 NVMe SSDs—as well as the OWC ecosystem of U.2 drives and adapters—for blazing-fast flash speeds and densities per bay
• Incredibly Easy RAID: Create, manage and monitor advanced RAID sets with OWC SoftRAID
• Use it all: Connect keyboards, mixers, cameras, displays and mobile devices such as tablets with (2) 10Gb/s USB-C ports and (3) 10Gb/s USB-A ports
• See more: Connect an 8K display to DisplayPort 1.4
• Do more: add a half-length, full-height single-width audio/video capture card, 10Gb Ethernet, SSD storage, hardware RAID or I/O card to the PCIe x16 slot (at x4 speed)
• Customizable: Daisy chain up to five devices or add an additional display with a second Thunderbolt (USB-C) port
• Charging: Charge your notebook powered up to 85W via the Thunderbolt port
• OWC 5-year limited warranty

Technical data

• Total capacity: 0 TB
• Display support
  up to two 4K@60Hz displays,
  or one 8K@60Hz display,
  or one 4K@120Hz display,
  or one 5K@60Hz display
• Thunderbolt 3 display support
  (Titan Ridge): Up to 8K@60Hz or 4K@120Hz via native Thunderbolt 3 display or other display supporting USB-C and DisplayPort 1.4 connections
  DisplayPort 1.4: Up to 8K@60Hz or 4K@120Hz
• Hot Swap Support: Yes
• Certificates: CE, FCC, VCCI, RCM, BSMI
• Data transfer rate (maximum): Thunderbolt 3: Up to 40 Gbps
• Plug and Play: Yes
• RAID features
  RAID software
  compatible with Mac OS
  macOS 10.15 Catalina
  macOS 11.x Big Sur
  macOS 12.x Monterey
  PC OS compatibility: not compatible with Windows computers
• Power Supply: UL listed internal universal auto switching power supply
• AC input
  90-264V, 47-63Hz, 3.5A at 100V (max), 1.8A at 240V (max)
• DC output
  +12V, 25A
• Power 300W
• Power Delivery
  One 85W Thunderbolt 3 port
  One 15W Thunderbolt 3
  port Two 15W USB-C ports

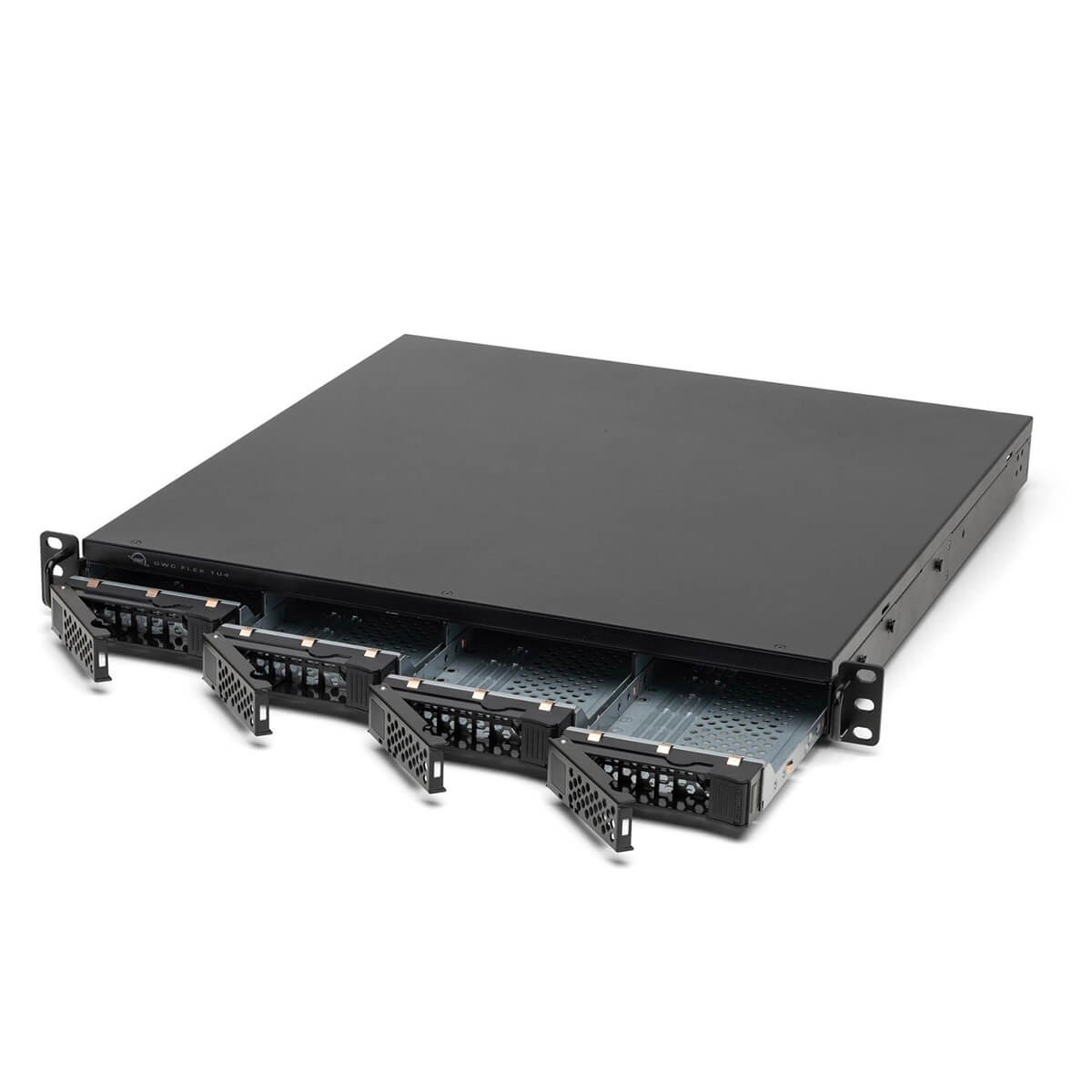

• Number of bays: 4
• Drive bays: 4 bays supporting: 2.5-inch SATA drives, 3.5-inch SATA drives, 2.5-inch U.2 drives, 3.5-inch U.2 drives, M.2 drives (with M.2 to U.2 adapter), 2.5-inch SAS drives (with SAS disk controller card), 3.5-inch SAS drives (with SAS disk controller card)
  Each bay 1-2 supports x4 PCIe lanes, each bay 3-4 supports PCIe x1 lane
• Expansion Slots
  1x Full-height, half-length PCIe 3.0 x16 (physical) slot running at PCIe 3.0 x4 lane performance

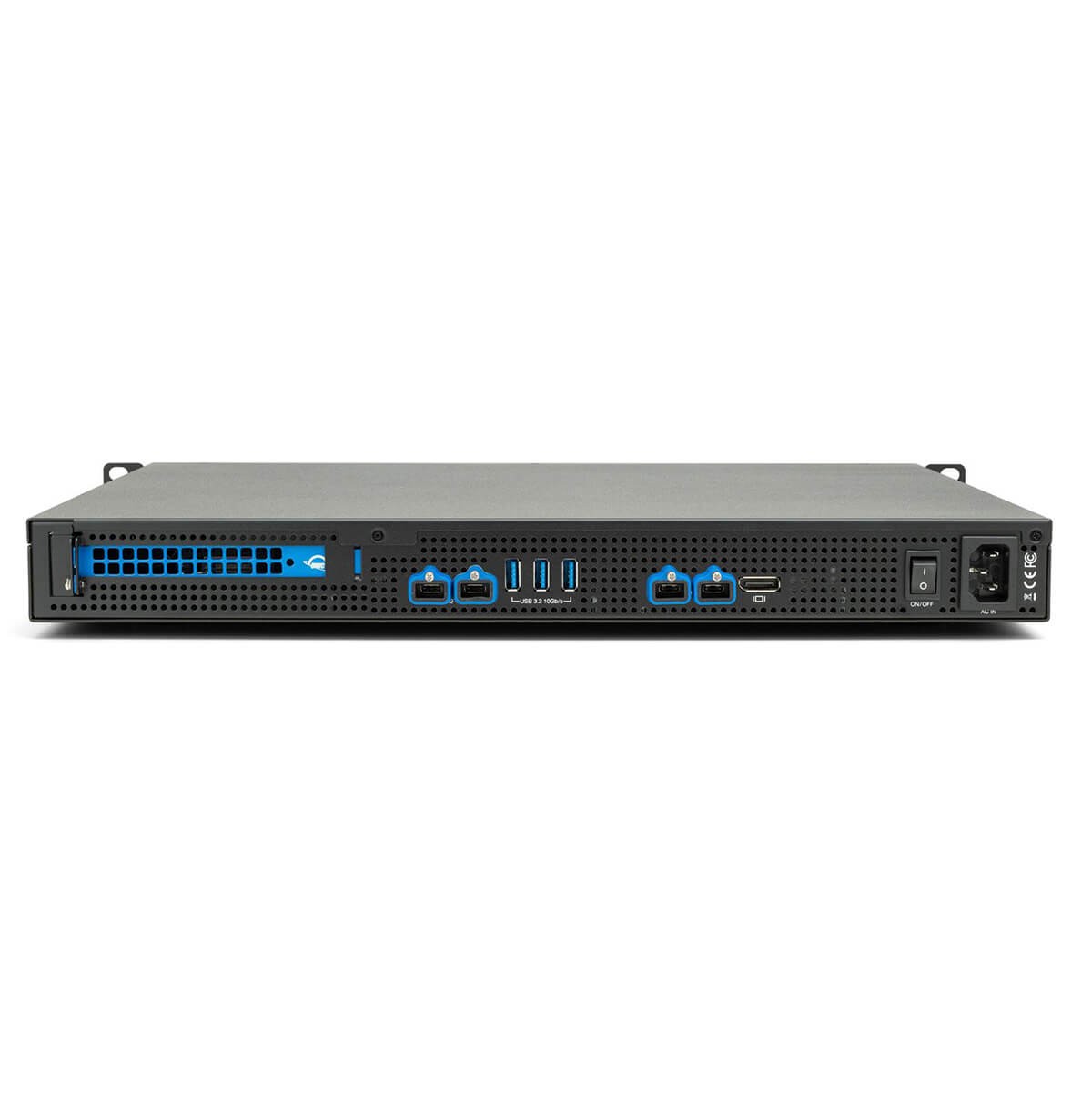

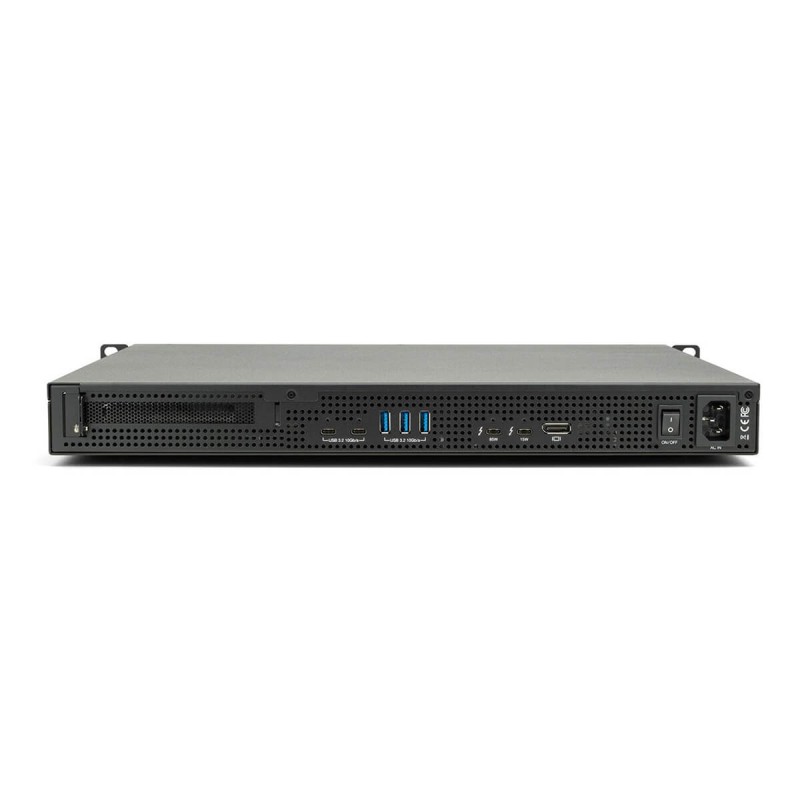

• Ports:
  1x Host port - Thunderbolt 3 (USB-C) up to 40 Gb/s
  1x Thunderbolt 3 (USB-C) port
  2x USB 3.2 Gen 2 Type-C ports up to 10 Gb/s (1250 MB/s) - USB 2.0 /3.0 backwards compatible
  3x USB 3.2 Gen 2 Type-A ports up to 10 Gb/s (1250 MB/s) - USB 2.0/3.0 backwards compatible
  1x DisplayPort
• Cooling: 3x cooling fan
• Power Button: Yes
• Housing color: black
• Dimensions 4.4 cm x 45.6 cm x 43.0 cm
• Weight 7.4 kg
• Space in rack: 1U
