OWC Mercury Helios 3S is a case that allows you to use a PCIe card connected to the computer via the Thunderbolt port. The OWC Helios 3S housing is compatible with computers running macOS and Windows. Take advantage of an additional PCIe card by connecting it to a Mac mini, iMAC, MacBook or other computer with a Thunderbolt port.
OWC Mercury Helios 3S Obudowa 1x PCIe 1x DP 2x Thunderbolt
Add new possibilities to your work environment
Thunderbolt offers more than just speed. Mercury Helios 3S harnesses the full power of Thunderbolt to give your Mac or PC extra power. Daisy-chain up to five additional Thunderbolt peripherals for incredible work or play options. Charge your notebook with 85W of power while you work. You can even add an 8K display via the DisplayPort interface to expand your viewing space.
Plug and play
No special software or drivers are needed... simply connect your Mercury Helios 3S to an open Thunderbolt 3 port on your computer using the included cable to instantly expand your system's capabilities.
No tools are needed either... simply unscrew the two thumbscrews and insert the card to start enjoying increased productivity wherever your work takes you.
Product specification:
- Product code: OWCHELIOS3S
- Black colour
- Material: Aluminum
- Operating system compatibility: macOS 10.13 or later, Windows 10 or later
- PCIe Cards Supported: Mechanical: x16 slots and cards supporting half-length, full-height and double-width enclosures
- Bandwidth: PCIe 3.0 x4. Cards requiring at least x8 or more PCIe lanes are not supported.
- GPUs are not supported
- If the card requires a driver, it must support Thunderbolt.
- Cards requiring more than 75W are not supported.
- RoHS certificate

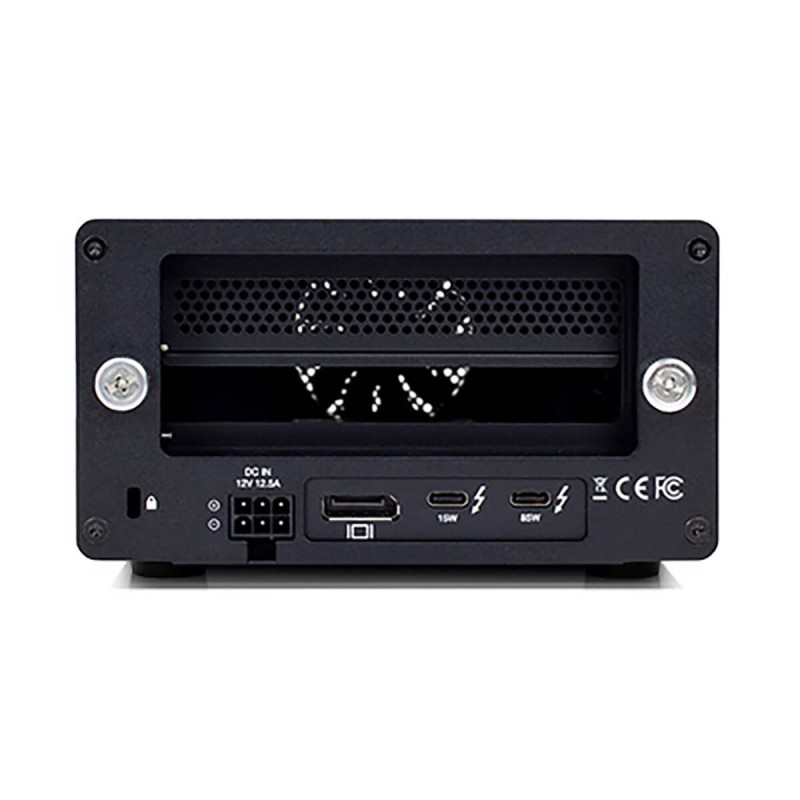

- Ports: 2x Thunderbolt 3, 1x DisplayPort 1.4
- Chipset: Thunderbolt 3: Titan Ridge (JHL7440)
- Expansion Slot: PCI Express 3.0 (x4) with x16 physical slot
- Support for dual display setups via Thunderbolt 3 and DisplayPort
- DisplayPort does not support DP++
- If you are using a DisplayPort to HDMI adapter, make sure you are using an active adapter.
- Power: AC Input 2.2A 100-240V 50-60Hz, DC Output 12.5A 12V, Power 150W
- Dimensions: Height: 8.2 cm (3.2 inch), Width: 14.3 cm (5.6 inch), Length: 23.3 cm (9.2 inch)
- Weight 1.6 kg (3.64 lb)
