Zero Configuration
- Plug and Play: Works flawlessly with universal Ethernet switches without the need for IGMP configuration. Simply plug it in and start using it in minutes.
-

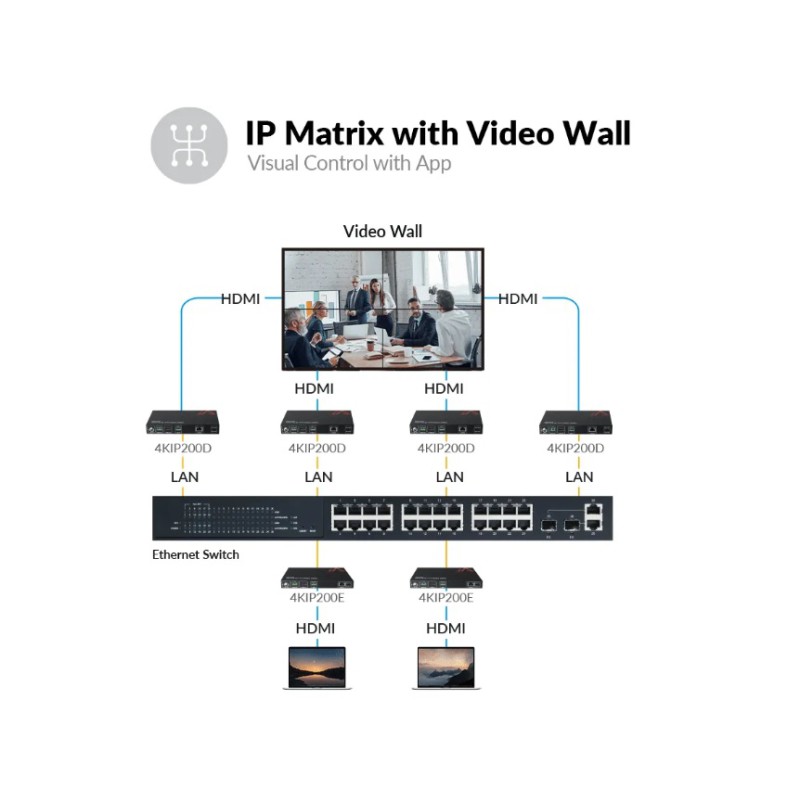

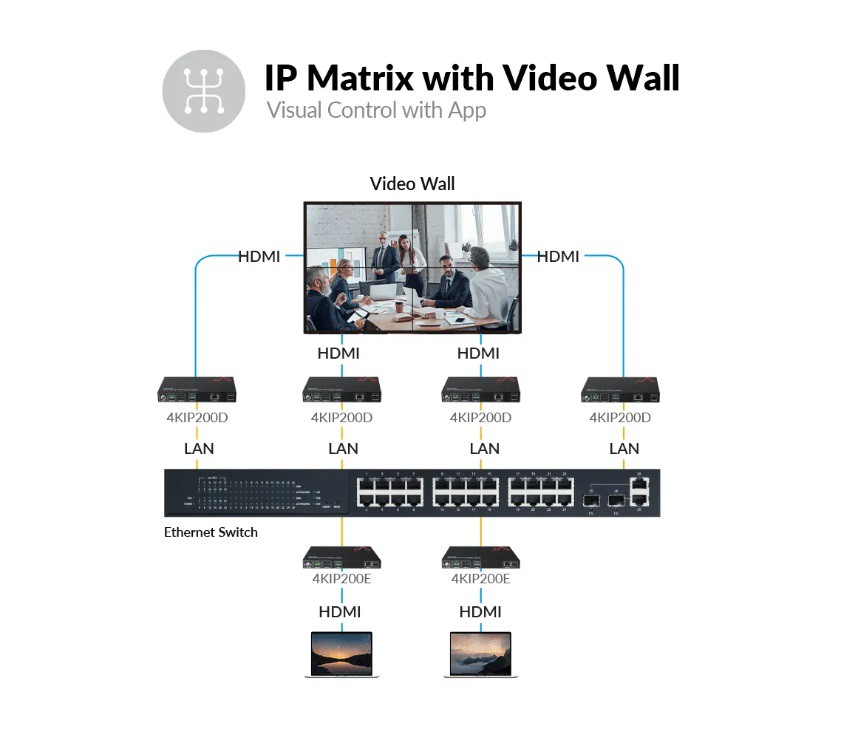

IP Matrix with Video Wall
- 4K Compatibility: Integrates with 4KIP200E encoders to create a distributed 4K IP matrix.
- Scalable Video Wall: Supports video walls up to 8×8, offering greater flexibility and scalability than traditional matrices.
-
Easy Visual Control
- VDirector App: Manage all decoders simultaneously using the “VDirector” app, available on smartphones, tablets, and computers.
- New iOS Features: The latest version of the app on the App Store includes volume control, decoder grouping, and image rotation on the video wall.
-
Long-Distance Extension
- Extended Range: The encoder/decoder pair extends the Ultra HD 4K HDMI signal up to 394 feet/120 meters.

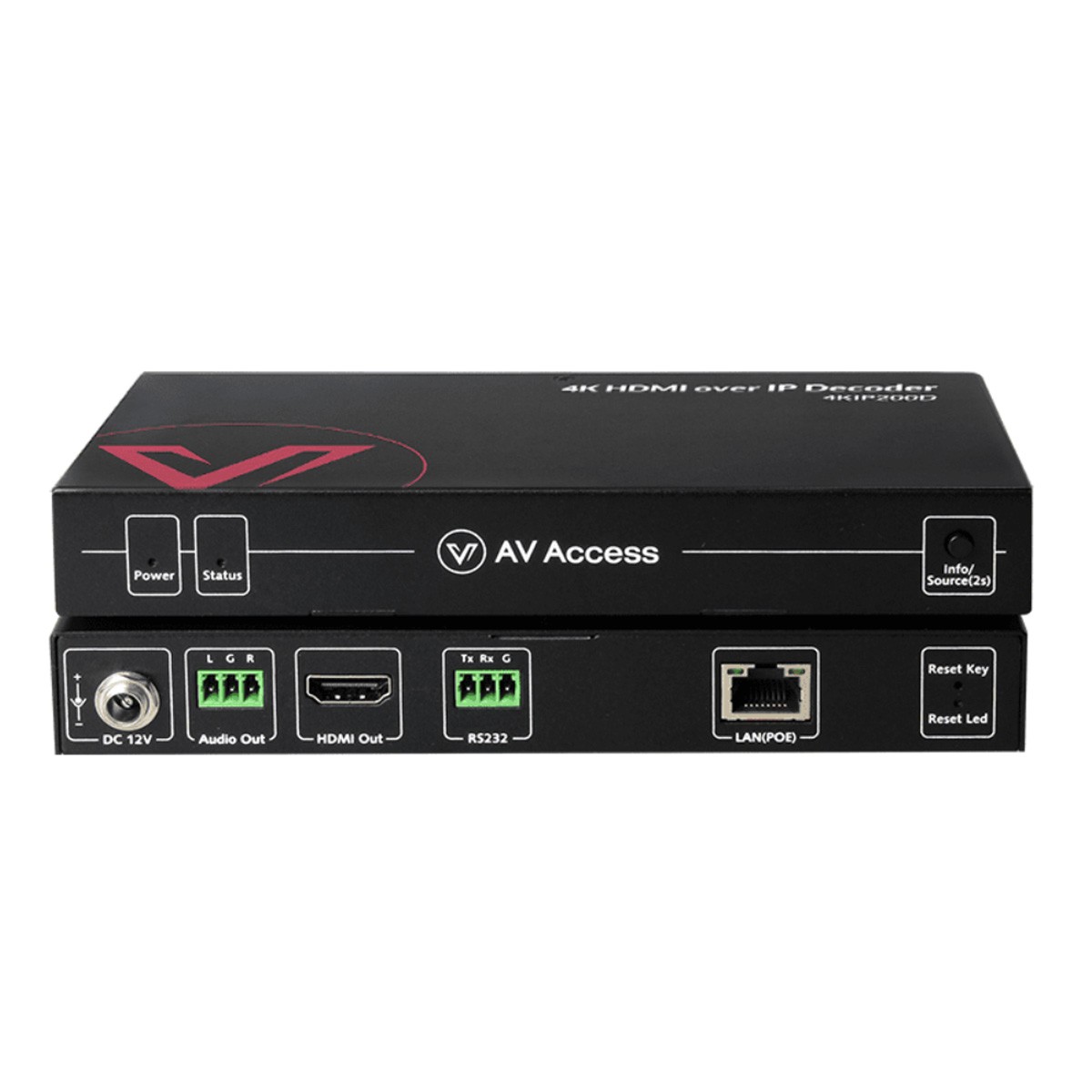

Zero-Configuration 4K AV over IP Decoder w/ Video Wall & Visual Control
Ready to use, user-friendly.
The 4KIP200D AV over IP encoder/decoder works perfectly with any Ethernet switch, whether managed or unmanaged. Don’t waste time configuring IGMP—this model is plug-and-play. Whether you’re an installer or an end user, you can effortlessly get the device up and running, even if you’ve never worked with IP technology before.
Note: You must use a PoE Ethernet switch if you want to power the encoder. A gigabit switch is recommended.
More flexible than a traditional matrix.

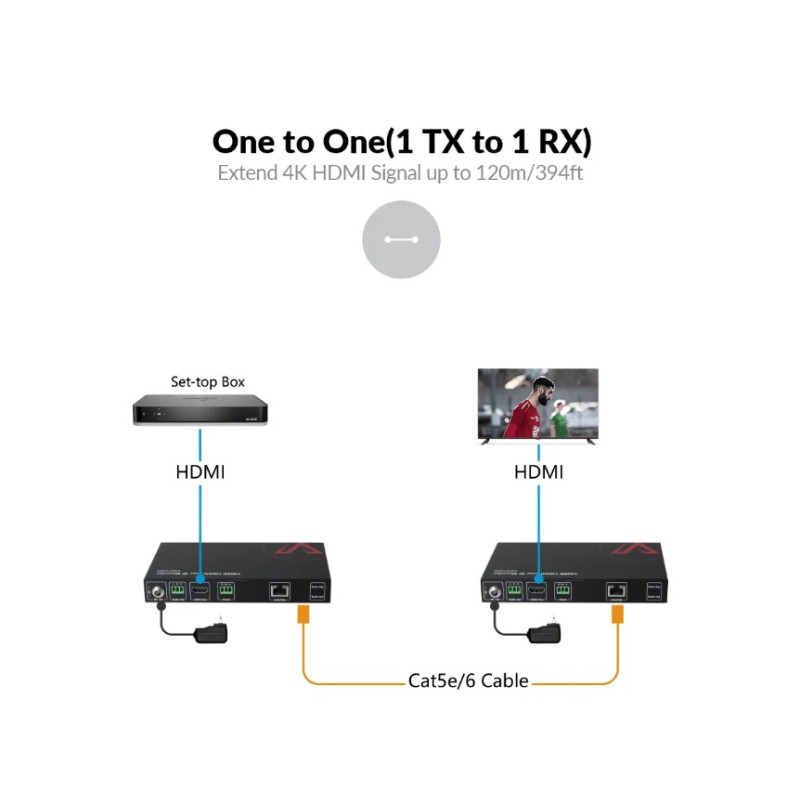

The 4KIP200D AV over IP solution supports one-to-one applications, allowing a single pair of encoder and decoder to work together to transmit a 1080p Full HD HDMI signal over a distance of up to 394 feet/120 meters. You can also add up to 254 encoder or decoder units to create a distributed IP matrix, which is significantly more flexible and cost-effective than traditional matrices.
Note: The HDIP100 is a more cost-effective solution when you need irregular matrix switching, such as 3×7 and 5×9, or when you need to build a matrix larger than 8×8.
Compatible with various devices.
You can install the “VDirector” app on your mobile devices, including iPhones and iPads, Android smartphones and tablets, Windows computers and tablets, etc. In addition, the 4KIP200 supports RS232 control via an external device, such as a projector. It can also be integrated with third-party control systems, such as Crestron.
Notes:
- To enable visual control on a smartphone/tablet, you must install an additional wireless router for signal transmission.
- To install the visual control app, you can search for “VDirector” in the App Store or Google Play to install the iOS/Android version. You can also scan the QR code in the user manual to download the app.
Technical Specifications
Video
- Input port: 1 x LAN
- Input resolution: up to 4K@30Hz
- Output port: 1 x HDMI
- Output resolution: up to 4K@30Hz
Audio
- Input port: 1 x LAN
- Output port: 1 x HDMI, 1 x Audio output
- Audio format: MPEG4-AAC Stereo
Control
- Control method: VDirector app (iOS/Android/Windows)
General
- Power supply: DC12V 1A / PoE
- Power consumption (max.): 3.6W
- Product dimensions (W x H x D): 175mm x 25mm x 100.2mm / 6.9” x 0.98” x 3.9”
- Net weight: 0.60 kg / 1.32 lbs
